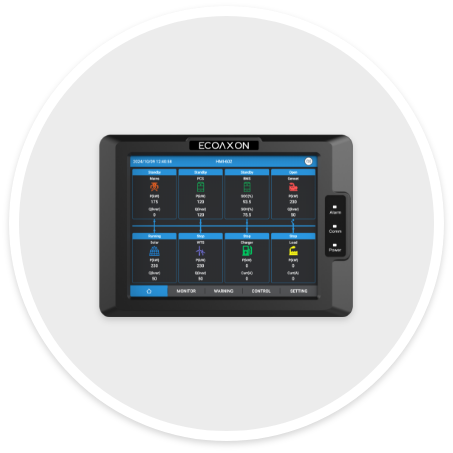

FlowVision Panel HMI-602

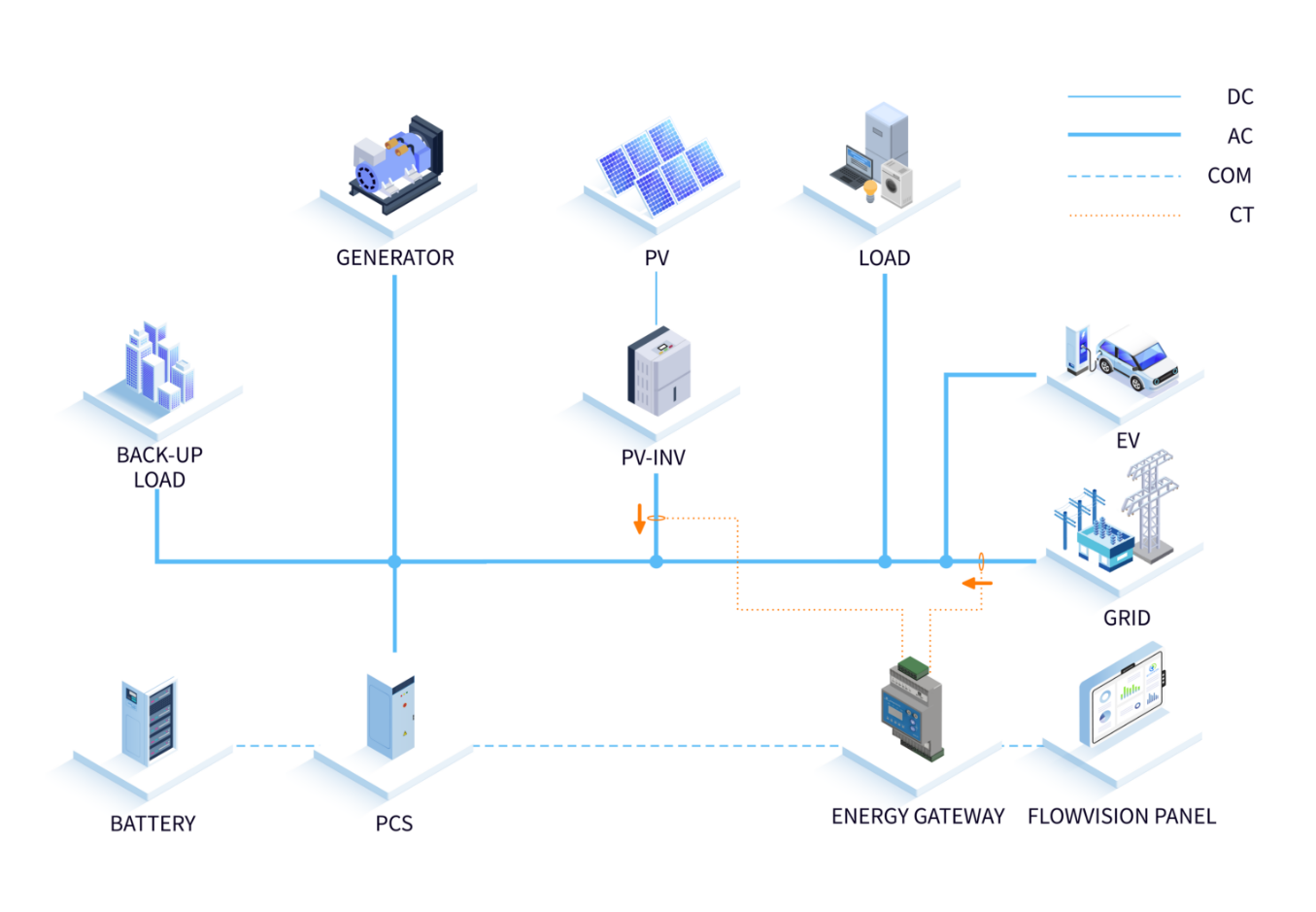

The interactive control display provides a comprehensive interface for monitoring and managing hybrid energy systems. It collects and presents real-time data from all energy sources, facilitates power distribution, and enables the customisation of control strategies, supporting multiple operational modes. Equipped with a fully customisable communication protocol and an intuitive touch-screen LCD, the system is easily programmable through a PC interface.
-
Scalable Management Efficiently coordinates multiple battery systems across different locations to enhance overall performance. -
Scalable Management Efficiently coordinates multiple battery systems across different locations to enhance overall performance. -
Scalable Management Efficiently coordinates multiple battery systems across different locations to enhance overall performance. -
Scalable Management Efficiently coordinates multiple battery systems across different locations to enhance overall performance.
Dimensions
Technical Specifications
| Overall dimensions | 221mm * 163mm * 51mm |
|---|---|
| Installation dimensions | 205mm * 147mm |
| Weight | 1.38kg |
| Working power range | 10 ~ 36VDC |
| Working temperature | - 25 ~ + 70°C |
| Display size | 8-inch capacitive touch LCD |
| Resolution | 800 * 600 resolution |
| Interface | 4-way RS485 communication port, 1-way CAN port, 1-way ethernet port |
