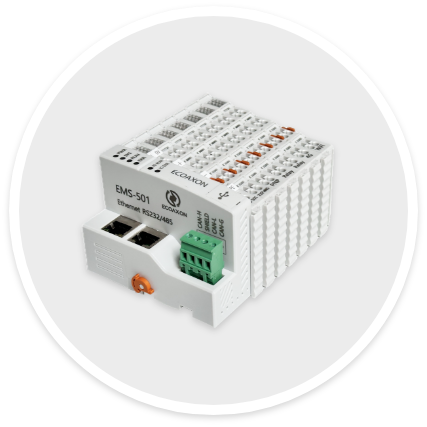

Cluster Controller EMS-501
The customisable Cluster Controller manages multiple battery systems across different locations as a single asset, optimising their aggregated performance for energy storage, grid services, and market participation. The controller coordinates charging, discharging, and energy distribution whilst protecting your battery system, and acts as a bridge between your energy systems and the larger virtual power plant (VPP) network.
-
Scalable Management Efficiently coordinates multiple battery systems across different locations to enhance overall performance. -
Scalable Management Efficiently coordinates multiple battery systems across different locations to enhance overall performance. -
Scalable Management Efficiently coordinates multiple battery systems across different locations to enhance overall performance. -
Scalable Management Efficiently coordinates multiple battery systems across different locations to enhance overall performance.
Dimensions
Technical Specifications
| Power | 24V DC (18 ~ 36V) |
|---|---|
| Interface | RS485, RS232, CAN, ethernet |
| Max. functional module | 8 |
| Upstream (modular) | Wi-Fi, 4G |
| Working humidity | 0 ~ 95% RH |
| Installation | DIN rail |
| Input (input module) | PNP * 8 |
| Output (relay module) | Relay * 4 (0.1A / 240V) |
| Upstream | Ethernet |
| Working temperature | -20 ~ +80°C |
| IP rating | IP 50 |
| Size (main controller) | 100mm * 69mm * 48mm (3 poles) |
