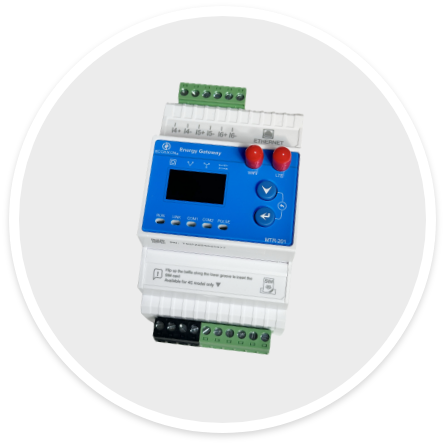

Energy Gateway MTR-201
The Energy Gateway serves as a bridge between your energy systems and connects to the larger virtual power plant (VPP) network. It maximises your assets to use or store energy at optimal times based on the grid’s needs and electricity market prices to unlock new revenue streams.
-
Revenue generation The gateway facilitates participation in VPP events and can access all FCAS markets for maximum revenue generation. -
4-in-1 Plug and Play Design A high-speed meter, VPP gateway, controller and data recorder are seamlessly integrated in a single unit to monitor and manage your energy assets in real-time. -
Outperforms rigorous compliance standards The cutting-edge gateway exceeds the strictest international industry standards to comply with IEC 61557-12 and MASS 8. -

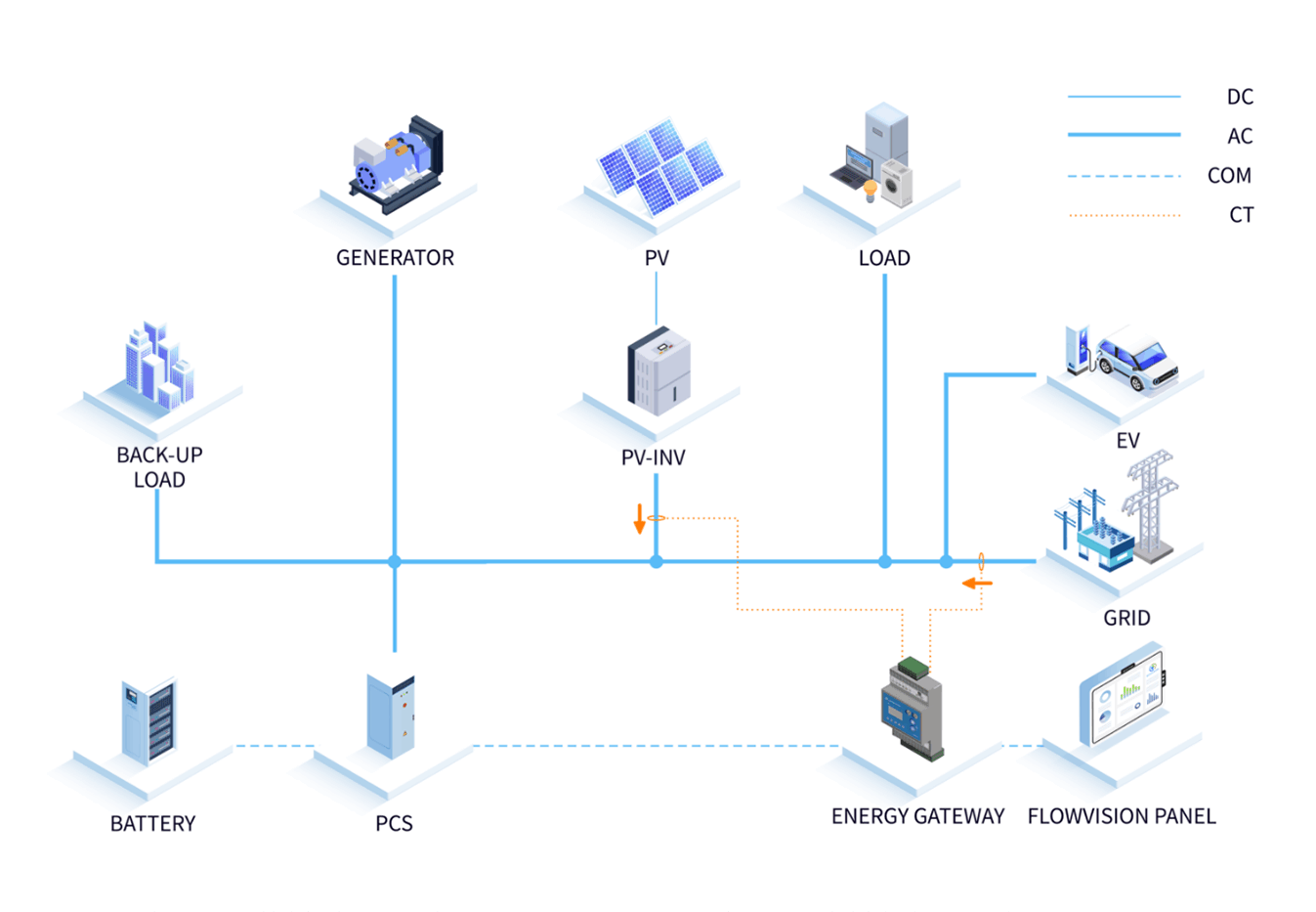

Data Monitoring and Communication The gateway collects real-time data from distributed energy assets (e.g., solar panels, batteries, electric vehicle chargers) and transmits it to the VPP platform. It monitors energy production, consumption and storage.
Dimensions
Electrical
| Optional CT (up to 6 CTs) | 2Split core CT: 100A (default), 500A Rogowski coil: 1000A, 2000A |
|---|---|
| Number of phases | 1 - 3 |
| Voltage | 200 ~ 265V, 0.01V resolution |
| Current | Default 100A, 0.001A resolution |
| Frequencies | 45 ~ 60 Hz, 0.0001 Hz resolution |
| Energy | 0.0001kW resolution |
| Sampling interval | Up to 10ms |
| Recording interval | Up to 50ms |
| Upstream communication | 4G, Wi-Fi, ethernet |
| Downstream communication | RS485, Wi-Fi, ethernet |
| Upstream protocol | TCP, MQTT, FTP |
| Relay | 1 channel, DC 24V 2A |
